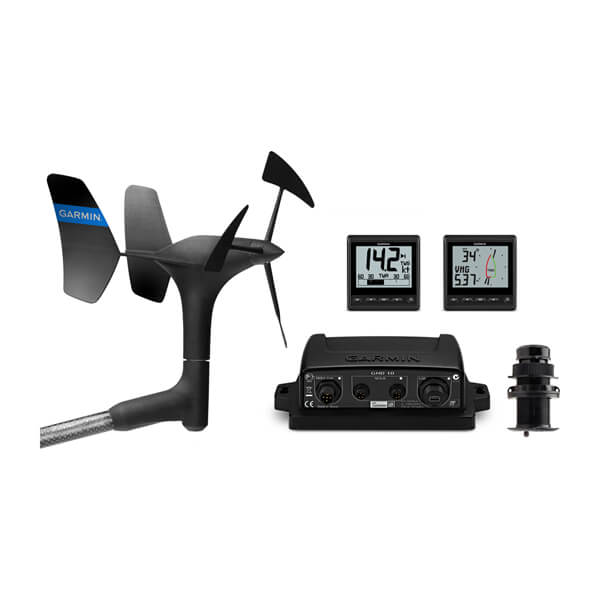

Garmin GAR0100124870 Wired Sail Pack With DST810

Garmin GNX™ Wired Sail Pack 52 GNX™ Wind, GNX™ 20, gWind™ Wired and DST810 transducers

• Includes GNX Wind, gWind™ Wired, GNX™ 20 and Airmar DST810 transducer
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wired transducer features 3-bladed propeller and twin-fin design
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data — plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app
• Easy plug-and-play installation between Nexus®, Garmin chartplotters, NMEA 2000® and USB

With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water.

GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.

gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

The easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.

DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000® network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

• gWind™ transducer
• GNX™ 20 marine instrument
• GNX™ Wind marine instrument
• GND 10 black box bridge
• Airmar DST810 thru-hull smart transducer
• NMEA 2000® drop cable (2 meters) x 3
• NMEA 2000 T-connectors x 5
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation
