Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18
Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18 XKASL12X18

Manufacturer: Lectrotab
MPN: XKASL12X18
Availability: Out Of Stock
$1,351.19
$1,322.60
$1,351.19
Subtotal: $1,351.19
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18

Lectrotab

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18 XKASL12X18

$1,351.19
Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18

Lectrotab

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18 XKASL12X18

$1,351.19
Description
Description
x

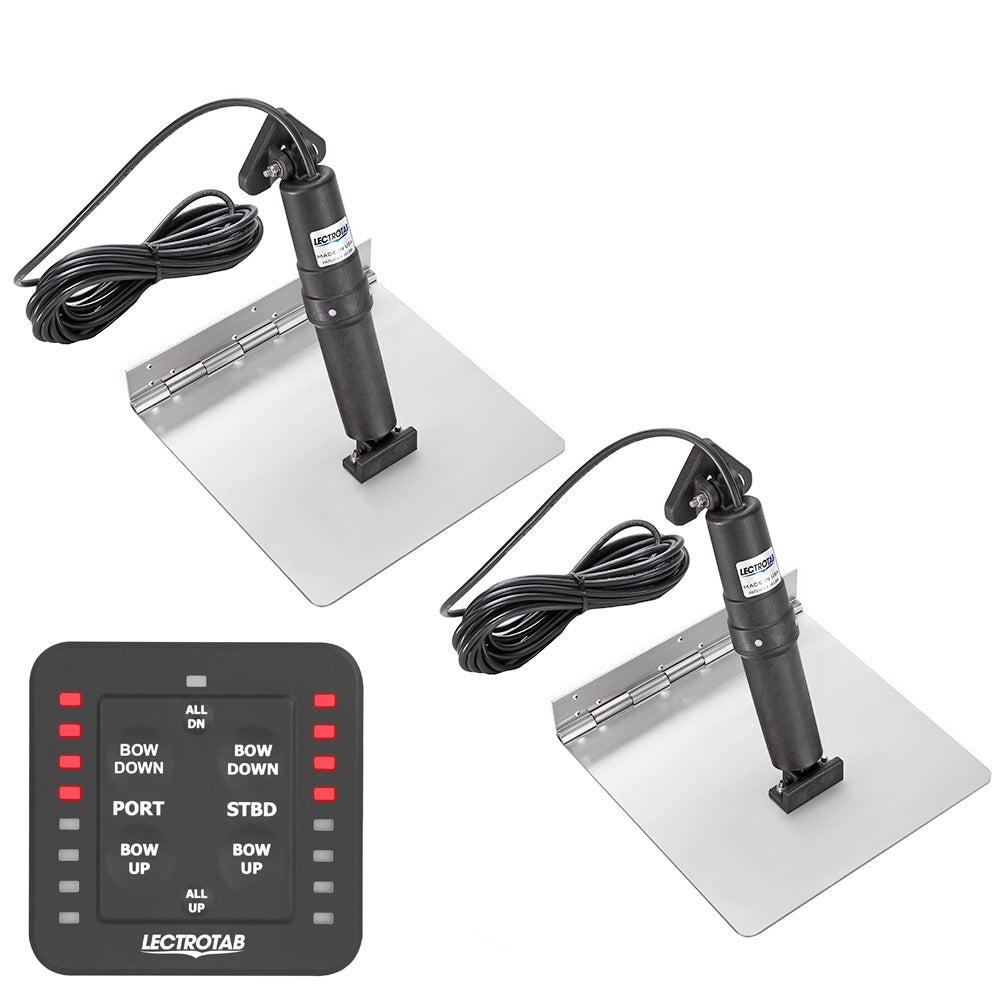

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

  • Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
  • Boat Length - 20' to 40' (6 to 12 M)
  • Trim Tab Material - 12 gauge, 304 Stainless Steel
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
  • Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
  • Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

  • One (1) One-Touch Control
  • Two (2) Stainless Steel tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as a Kit
