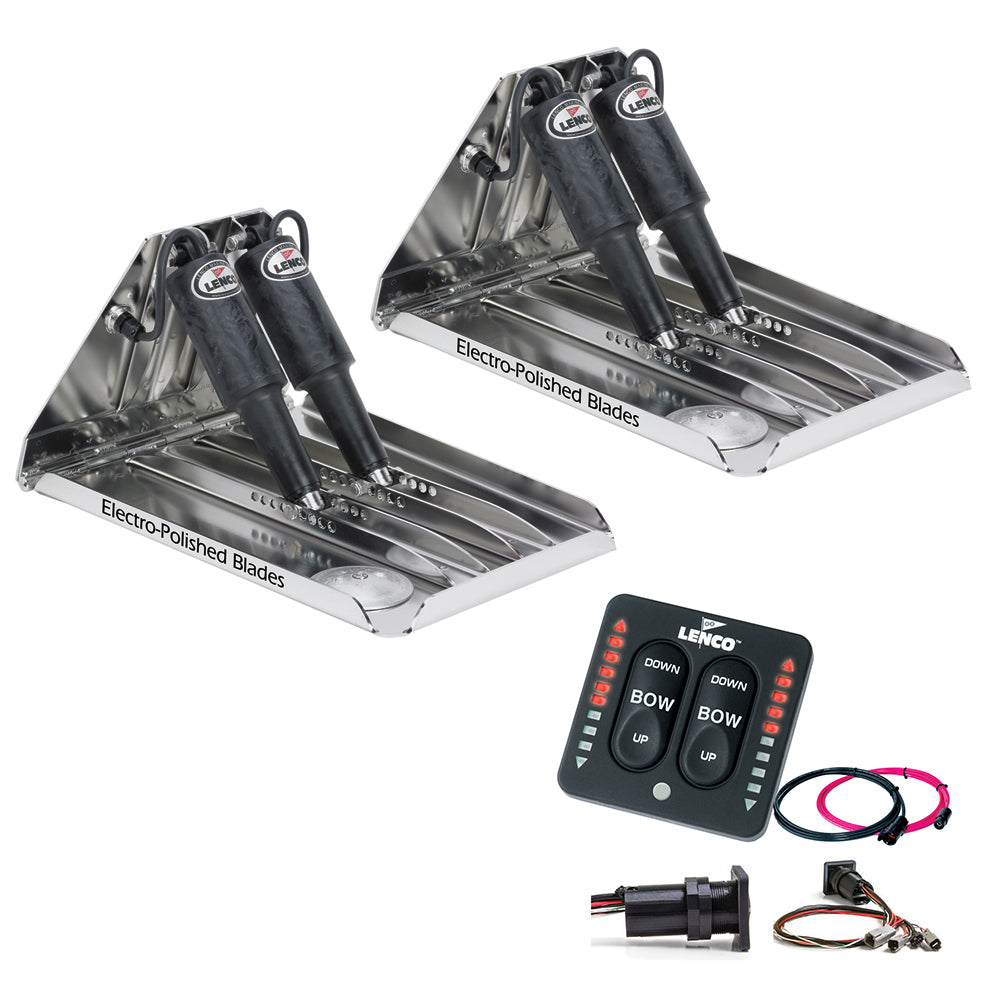

Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit w/LED Indicator Switch Kit 12V RT19X14XDI

Extreme Duty Performance Trim Tabs


Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge - 304 SS with 1" turned up edges, a 85 degree inside taper, and 3/8" diamater hinge pin. Extreme Duty actuators with 3/8" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's XD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different?

• All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

• Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability

• Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability

• Stitch welded heavy duty stainless steel hinge & bracket

• Adjustable mounting holes

• 10-gauge laser cut stainless steel trim tab planes and hinges

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• Electro-poished solid 316 stainless steel billet ends

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 3/8" stainless steel bolts

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each kit contains:

• Tactile LED Indicator Switch Kit

• 4 actuators with 6' Lead and Deutsch Plugs

• 2 SS trim tab planes

• Boat Mounting Harware supplied by customer

• Actuator Extension Harnesses(4 For Dual Actuator Application) will be required
