Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+
Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

Manufacturer: Lowrance
MPN: LOW00015855001
Availability: Out Of Stock
$508.88
$749.00
$508.88
Subtotal: $508.88
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

Lowrance

Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

$508.88
Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

Lowrance

Lowrance LOW00015855001 Reveal 7 50/250kHz C-Map Contour+

$508.88
Description
Description
x

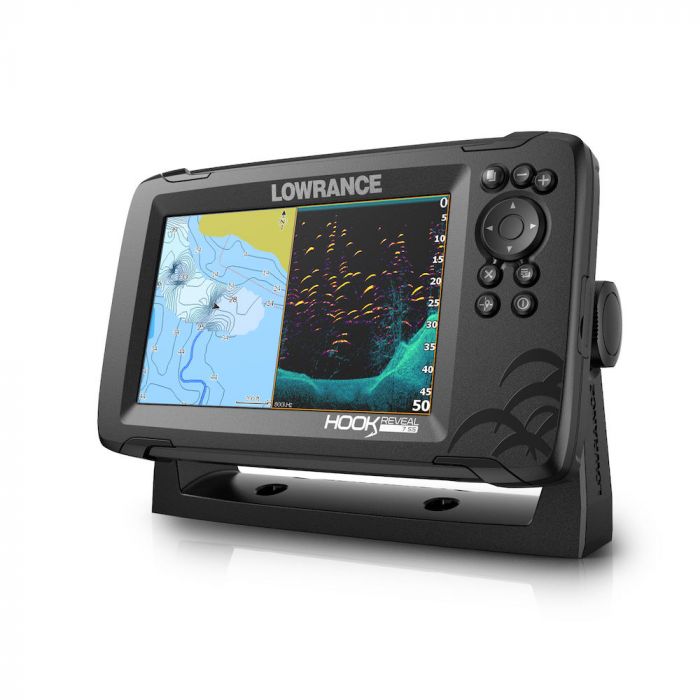

Lowrance HOOK Reveal 7 50/200kHz with C-Map Contour+ microSD Card

Model: 000-15855-001
  • FishReveal
  • Genesis Live Real-Time Mapping
  • Autotuning sonar
  • Double the sonar coverage of other fishfinders
  • 50/200 HDI transducer with Low/High CHIRP and DownScan Imaging™
  • C-Map Contour+ microSD Card
  • SolarMAX™ Display
  • New fish-finding color palettes
  • Optimized keypad with one-touch access to key features
  • Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
  • microSD card slot
  • Easy front-dash or gimbal-bracket mount

From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features — FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.

Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.

HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas — down to ½-foot contours — with Genesis Live.

Specifications
Display
Backlight Color Pure White LED
Resolution 800 x 480
Screen Brightness >1000 NITS
Size and Type 7" (178 mm)SolarMAX Display
Viewing Angles 80° top/bottom, 85° left/right
Electrical
Power Consumption, max. 1.25A @ 13VDC with backlight on full
Power Consumption, min. 1.25A @ 13VDC with backlight on full
Power Consumption, typical 1.25A @ 13VDC with backlight on full
Recommended Fuse Rating 5A
Supply Voltage 12v DC (10.8-17VDC)
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Environment
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed
GPS
Correction DGPS, WAAS
Time to First Fix 30s
MFD
Cartography included C-Map Contour+ microSD Card
Cartography supported C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)
External Storage Micro SD Card(32 gb Max)
GPS 1 Hz GPSGLONASSWAASEGNOSMSAS
Sonar (inc. compatibility) Integrated:CHIRPBroadbandDownScan
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails
Compass Safe Distance - Metric, imperial 12" (300mm)
Physical
Dimensions (W x H x D) 9.31" (236.4 mm) x 6.46" (164.2 mm) x 4.42" (112.3 mm)
Mounting Type Gimbal Bracket,Front Dash, Flush Mount

What's in the Box:
  • HOOK REVEAL 7
  • C-Map Contour+ microSD Card
  • BRACKET + KNOBS: 7" G2T/G3/ELITE/HOOK
  • HOOK2 POWER CABLE (5/7/9/12)
  • HDS FUSE & FUSE HOLDER
  • HOOK2 7/9/12 CORNER CLIPS
  • HOOK REVEAL 50/200 HDI XDCR PK
