Description
Description
x

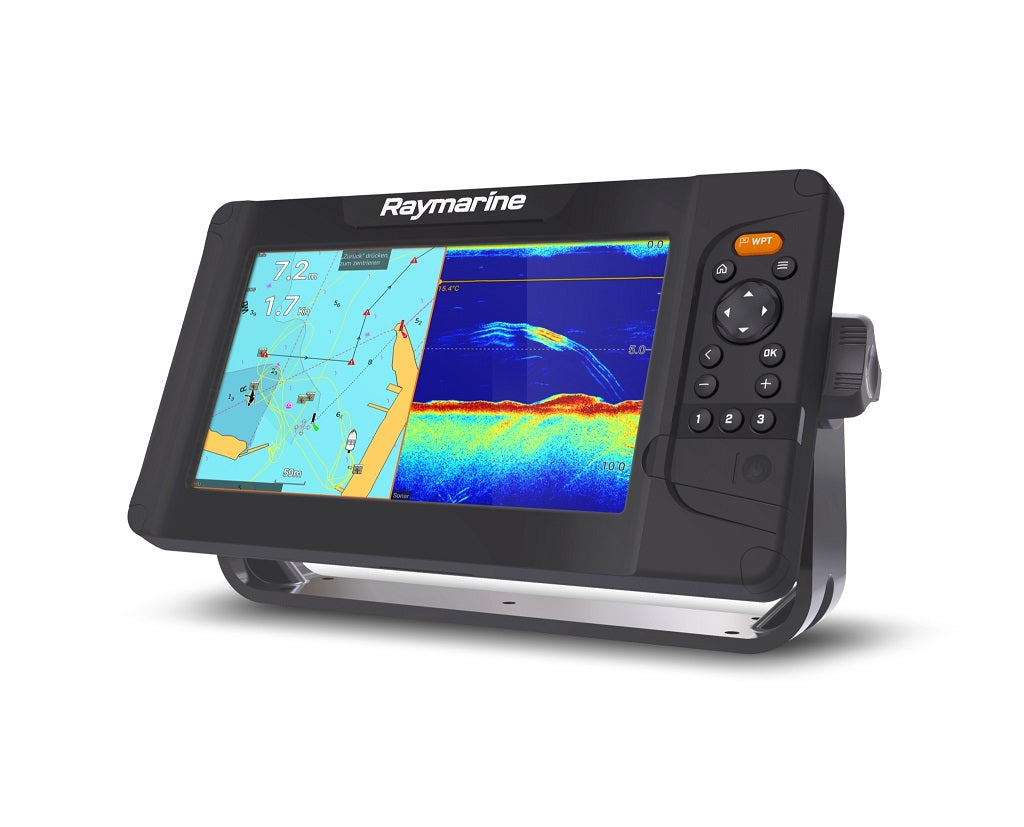

Raymarine Element 9S Lighthouse NC3 USA with FHS

Model: E70533-00-102
  • Category-leading quad-core processor delivers fast chart redraw and responsive performance
  • Fast and accurate 10hz GPS/GNSS sensor
  • Rugged design and backed by Raymarine’s three-year warranty (product registration required)
  • Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
  • Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
  • Built-in High CHIRP sonar for depth and bottom contour imaging
  • Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
  • Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
  • From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
  • An oversized waypoint key for quick and easy marking of your favorite locations
  • Three user-programmable quick keys to access your favorite pages with one button push
  • Live menus let you customize charts while seeing the navigation display change in real time

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

Specifications
Display Size 9.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Non-Touch
Brightness 1,500 nits
W x H x D (mm) (11.3 x 6.3 x 2.4 inches)
Product Weight (lbs) 5.0
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)
Voltage 12V DC (8V to 16V DC)
Power Consumption (max 12V DC) 20 Watts
GNSS / GPS Built-in GPS/GLONASS
Sonar Type (Built-in) Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth CHIRP Sonar = 274m (900 feet)
Radar Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar N/A
MARPA N/A
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi WiFi - 802.11 b / g / n
Cartography Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping Raymarine RealBathy and Navionics SonarChart Lice
Waypoint / Routes / Tracks 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory 1 x microSD slots
Dimensions 287 x 161 x 62mm

What's in the Box:
  • Element display
  • Surface mount gasket
  • Suncover
  • Trunnion knobs x2
  • Documentation pack
  • Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
  • Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
  • Lighthouse NC3 microSD
