Raymarine T70156 EV-200 Power Evolution Autopilot

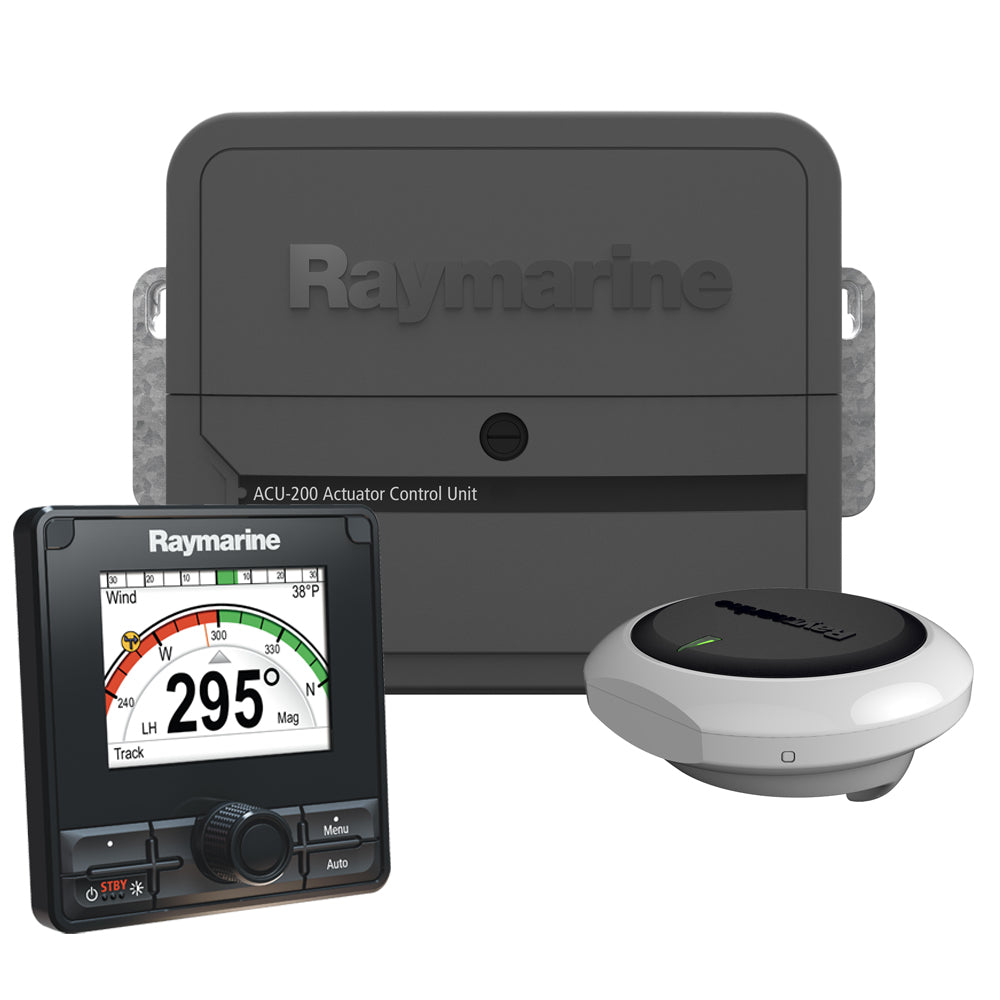

EV-200 Power Evolution Autopilot

Features:

• Evolution Ai for superior performance
• No calibration required
• Use with any Type 1 Hydraulic Pump (sold separately)
• 12V or 24V DC operation
• SeaTalk^ng Network Capable
• ACU-200 auxiliary power to SeaTalk^ng network
• Includes p70Rs Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-200 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70Rs Autopilot Control Head

The p70Rs has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-200 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Support Drive Units

Type 1 Drive Unit (sold separately)

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ngg Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator
