Raymarine T70330 Evolution EV-150 Hydraulic Autopilot System Pack

Evolution EV-150 Hydraulic Autopilot System Pack

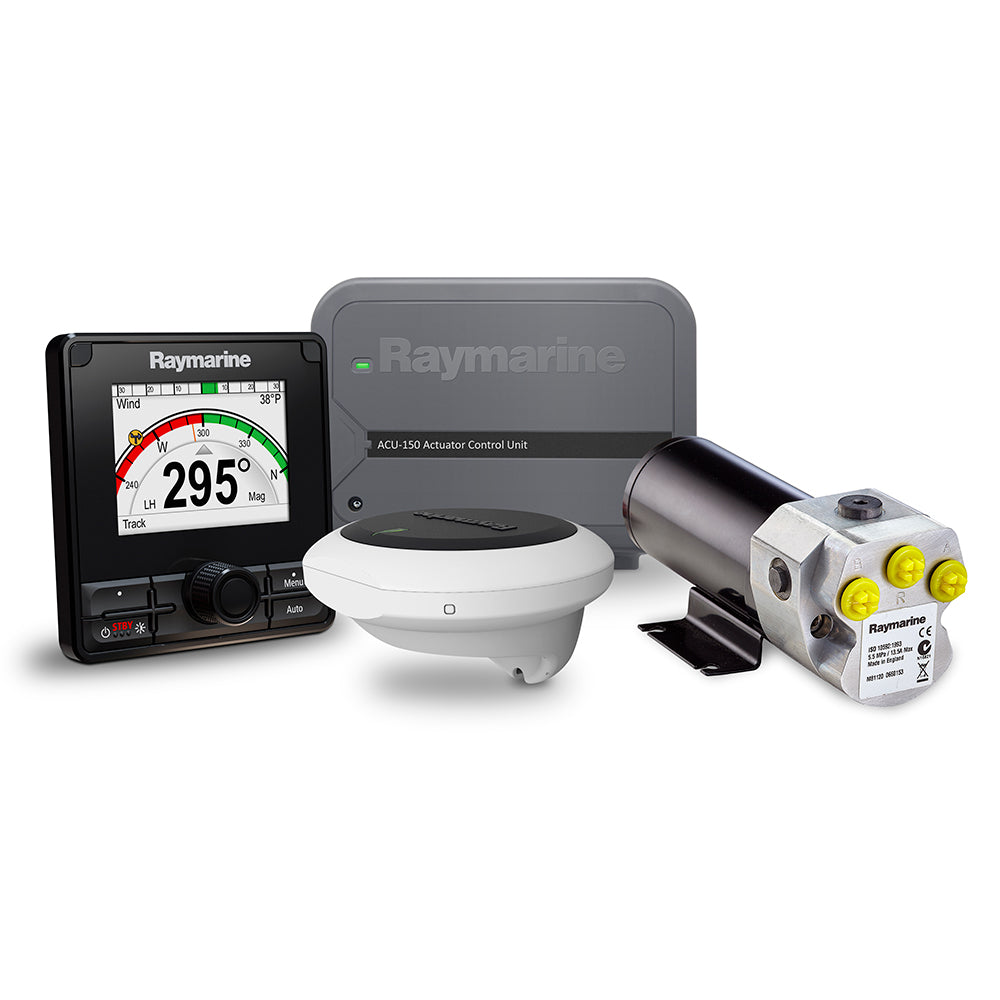

The Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.

Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated setup and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course-keeping, regardless of vessel speed or sea conditions.

The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-referenceless systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on course at trolling speed, cruising speed, and all-out running.

Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines, and adjust your spread.

The system is also equipped with Raymarine's latest Evolution TrackIQ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw, and heave to stabilize GPS navigation data like course over ground, speed over ground, and cross-track error for the best possible tracking to waypoints and routes.

The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium-sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.

Includes

• E70329 p70Rs Control Head

• E70096 EV-1 Sensor Core

• R70160 Evolution Cable Kit

• E70430 ACU-150 Actuator Control Unit

• M81120 Type 1 12v Hydraulic Pump
