Raymarine T70550 Black Q24D Quantum 2 Doppler Radar w/15M Power & Data Cables

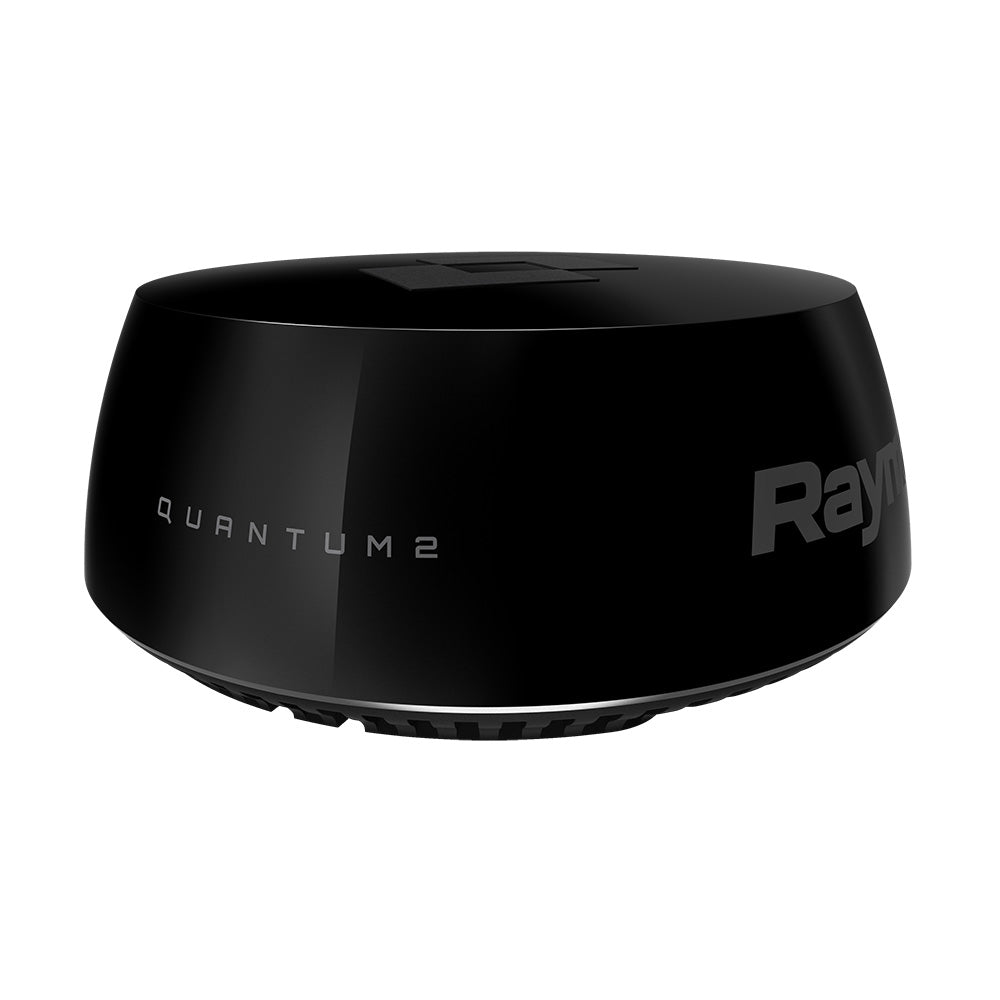

Black Q24D Quantum 2 Doppler Radar with 15M Power & Data Cables

Keep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.

Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.

Features:

• Black radome enclosure
• WiFi and Ethernet
• 15M power and data cables are included
• Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
• Available as a standalone scanner with power and data cable
• Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range
• Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points
• Once installed, Quantum 2 starts right up and immediately provides awareness

Quantum 2 Black: Stay Aware With Style

Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.

Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.

Superior Collision Avoidance

Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.

Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.

What’s In The Box:

• 18 in. black radome
• Power cable 15M (49.2 ft)
• Data cable 15M (49.2 ft)
• Fixing bolts with spring washers and flat washers (M8) x 4
• Documentation

General Specifications:

• Dimensions (Diameter|Height): 541.0 mm|209.5 mm
• Weight: 5.6 kg
• Supply Voltage: Either 12 V dc or 24 V dc nominal
• Minimum: 10.8 V dc | Maximum: 31.2 V dc
• Operating Voltage Range: Minimum: 10.8 V dc | Maximum: 31.2 V dc
• Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
• Waterproofing: IPX6
• Operating Temperature Range: -10°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Additional Storage Conditions: Store upright; do not block vents on the underside
• Humidity: Up to 95% at 35°C
• Maximum wind speed: 100 kts

Transmitter Specifications:

• Type: X-band solid-state transmitter with pulse compression technology
• Transmit Frequency: 9354 MHz to 9446 MHz
• Peak Power Output: 20W
• Duplexer: Circulator
• Pulse Widths (3 dB): 40 ns to 14.7 us
• Chirp Lengths: 400 ns to 22 us
• Pulse Repetition Frequency: 920 Hz to 5900 Hz
• Chirp Bandwidth: Up to 32 MHz
• Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON

Antenna Specifications:

• Type: Patch Array
• Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
• Polarization: Horizontal
• Rotation Speed: 24 rpm nominal

Receiver Specifications:

• IF Frequency: 26 MHz
• Noise Figure: Less than 4 dB

Doppler Specifications:

• Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets
• Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel

Compatibility Specifications:

• Radar Type: Quantum 2 with Doppler
• MFD Compatibility: Axiom and Axiom Pro
• Perfect for: Sailboats, RIBs, and smaller powerboats
• Type: Solid State CHIRP Pulse Compression with Doppler target tracking
• Range Performance: 24NM
• Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft
• Automatic Bird Mode: No
• MARPA Target Tracking: Yes

Radar Specifications:

• Transmitter Type: X-band solid-state transmitter with pulse compression technology
• Target Tracking: Track up to 25 simultaneous Radar targets
• Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON
• Antenna Type: Patch Array
• Noise: Less than 4 dB
• Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
• Polarization: Horizontal
• Duplexer: Circulator
• Transmit Frequency: 9354 MHz to 9446 MHz
• Pulse Repetition Frequency: 920 Hz to 5900 Hz
• CHIRP Lengths: 400 ns to 22 µs
• Pulse widths (3 dB)
• 40 ns to 14.7µs
• IF Frequency: 26 MHz
• Rotation Speed: 24 RPM
• Peak Power Output: 20 W

Conformance:

• Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental Specifications:

• Relative Humidity: Up to 95% @ 35°C (95°F)
• Additional Storage Conditions: Store upright; do not block vents on the underside
• Waterproof Rating: IPx6
• Storage Temperature: -25°C to +70°C (-13°F to 158°F)
• Maximum Wind Speed: 100 knots
• Operating Temperature: -10°C to +55°C (14°F to 131°F)

Physical Specifications:

• Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
• Weight: 5.6 kg (12.35 lbs)
