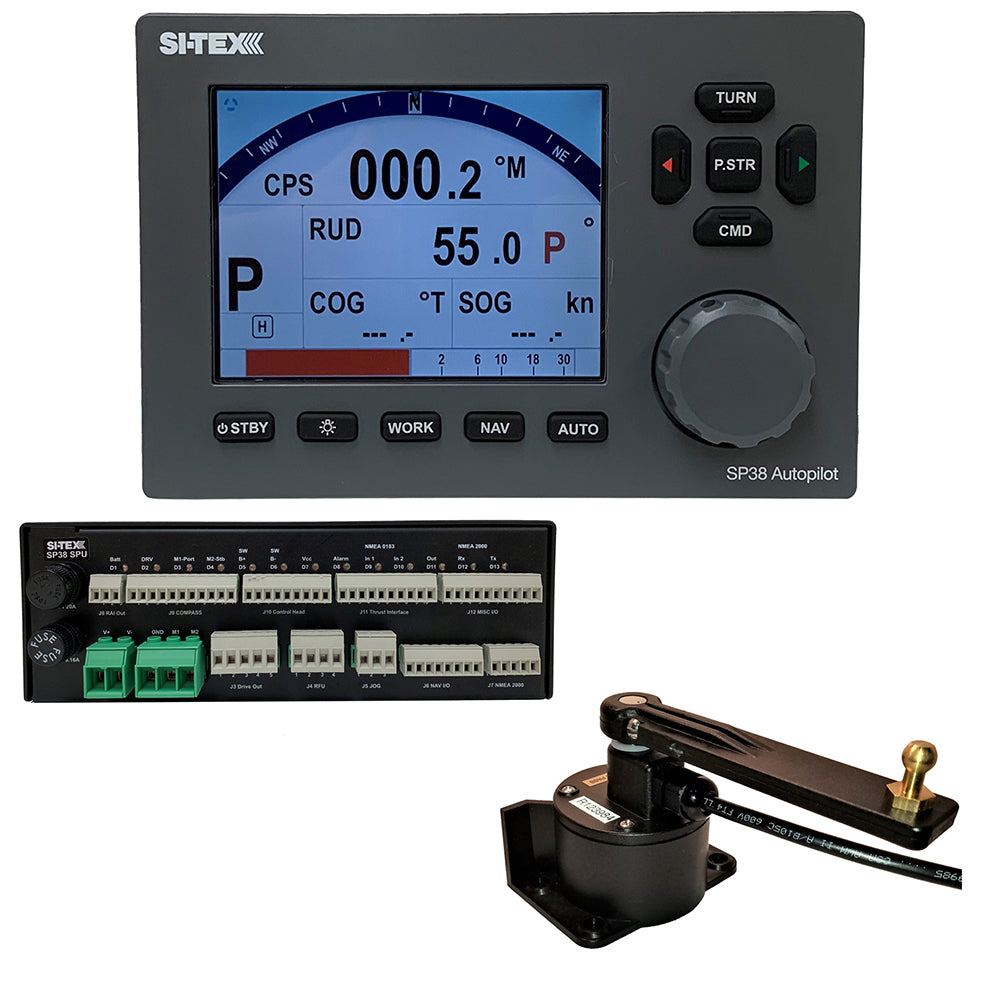

SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

Manufacturer: SI-TEX
MPN: SP38-4
Availability: Out Of Stock
$4,046.16
$2,999.00
$4,046.16
Subtotal: $4,046.16
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

SI-TEX

SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

$4,046.16
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

SI-TEX

SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

$4,046.16
Description
Description
x

SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

Features:

  • IST Intelligent Steering Technology provides superior vessel steering capability
  • ADAPTIVE steering for sea conditions and varying vessel speeds
  • AUTO-SETUP allows auto-drive detection, rudder response time, compass detection and calibration
  • NMEA 2000, ETHERNET, and NMEA 0183 interface
  • Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts
  • WORK Mode suitable for Fishing Boats, Towboats and Workboats
  • PRC- Proportional Rate Control feature provides gentle smooth steering response
  • Multi-Station capability with security station lock
  • SUNLIGHT viewable Color 5.7 LCD display
  • NAV Mode provide adaptive precise track steering
  • ALC Automatic Leeway Compensation for Drift, Tide & Wind
  • Fully compatible with onboard instruments and steering systems
  • Optional Z-Drive interface allows 360 Azimuth drive interface
  • Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
  • Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
  • Standard with Flush Mount kit, Optional Swivel mount bracket
  • IP67 Waterproof Control Head, TS4, NF4 and WS4
  • RoHS & CE compliance for EMI and RFI immunity

Additional Features:

  • 9 level backlit LCD display
  • LCD Display switches to Red Night Palette to protect Operators night vision
  • Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
  • Multiple steering parameters for Fast cruise, Slow cruise and Work modes
  • Simple to use course knob with mechanical detent
  • Multi-station capability with security station lock
  • Automatic trim
  • Adjustable yaw, turn rate and rudder settings
  • PORT and STBD dodge buttons for collision avoidance
  • Output for optional analog rudder angle indicator, up to 4 stations
  • Fully compatible with onboard NMEA N2K instruments and most steering systems

Specifications:

  • Operating Voltage: 10 to 30 VDC
  • Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
  • Network: NMEA 2000 & Ethernet
  • Navigational Interface: NMEA 0183 input/Output
  • NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
  • Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
  • Course Resolution: 1°
  • Course Detection: 0.5°
