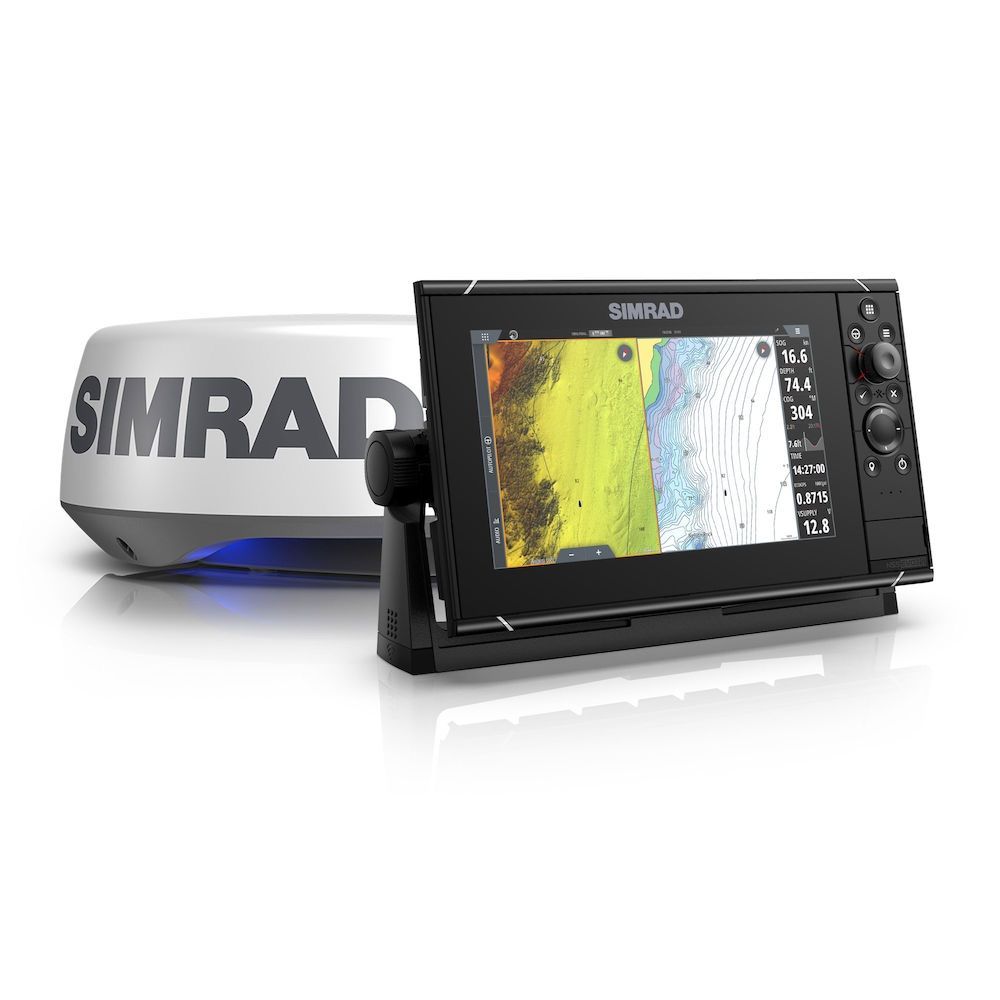

Simrad NSS12 evo3 + Halo20+ Radar bundle
Model: 000-15555-002NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
SpecificationsPhysical | |
Dimensions | 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) |
Weight | 3.10kg/6.83lb |
Environmental | |
Operating temperature range | -15°C to +55°C (5° F to 131° F) |
Environment Shock Vibration | 100,000 cycles of 20G |
Storage temperature range | -20°C to +60°C (4°F to 140°F) |
Water resitance | IPX6 and 7 |
Power | |
Supply voltage | 10 - 31.2 V DC |
Fuse rating | 5A |
Power consumption (Max) | 28W |
Display | |
Display backlight color | White |
Display resolution | 800 x 1280 |
Display screen brightness | 1200 nits |
Display size and type | High Visibility SolarMax HD® IPS 7" optically bonded TFT |
Display viewing angles | 80° top/bottom, 80° left/right |
Connectivity | |
Ethernet | 2 x 5 pin yellow connector x 1 Mbit |
Bluetooth | Internal |
NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI output April 2022 |
WiFi connectivity | Internal |
Sonar | |
Sonar frequencies | 40-250kHz 455-800kHz |
Sonar max depth | 3000’+ (tested with B175L) |
Sonar output power | 1kW RMS |
Compliance | Compliance |
GPS | |
GPS | Internal |
GPS update rate | 10 Hz |
GPS channels | 34 |
GPS correction | WASS, EGNOS, MSAS, GLONASS |
GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
