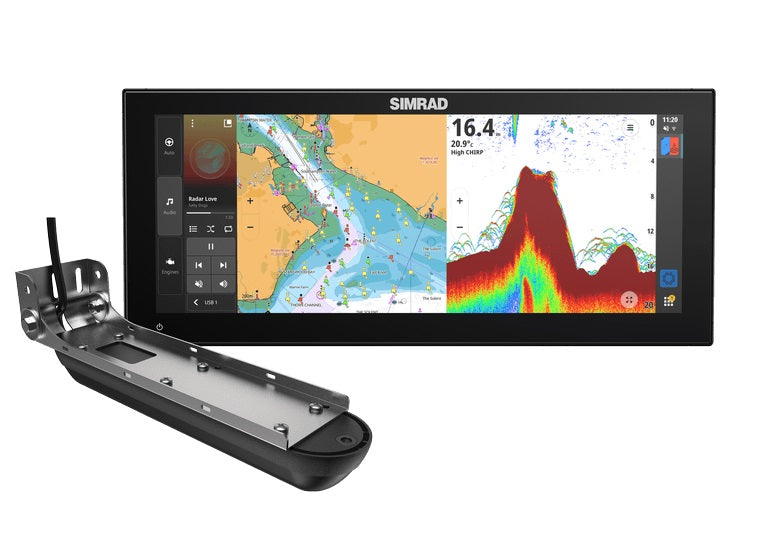

Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer
Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

Manufacturer: Simrad
MPN: SIM00016213001
Availability: 4 In Stock
$3,425.04
$3,549.00
$3,425.04
Please hurry! Only 4 left in stock
Subtotal: $3,425.04
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

Simrad

Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

$3,425.04
Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

Simrad

Simrad 000-16213-001 NSX 3015UW 15" MFD with Active Imaging Transducer

$3,425.04
Description
Description
x

Simrad NSX 3015UW Ultra Wide 15" MFD

Model: 000-16213-001
  • NSX ULTRAWIDE delivers all the benefits of multiple displays, without the hassle of multiple installations
  • Fewer cables
  • One cutout
  • Less setup
  • Condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.
  • The panoramic display compliments the aesthetics of your boat designs, letting you create eye-catching, low-profile dashboards straight out of the luxury auto world.
  • Information that is more consumable
  • More screen, less space
  • Simplified installation
  • Unique screen format — new to marine
  • Better viewability
  • Enables automotive-style dash designs

The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.

The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.

Specifications
Display
Size and Type 15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Resolution 1920 x 720 px
Viewing Angles 85° (top, bottom, left, and right)
Screen Brightness >1000 nits
Backlight Color White
Power
Supply Voltage 12 V DC (10 - 17 V DC min - max)
Power Consumption max 25 W (1811 mA at 13.8 V)
Protection Reverse polarity and over voltage (Max 18V)
Recommended Fuse Rating 3A
Physical
Dimensions No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48")
-With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80")
MountingType Rear mount (bracket supplied), Bracket mount (bracket optional)
Compass Safe Distance 50 cm (1.7 ft)
Environmental
Operating Temperature Range -15°C to 55°C (5°F to 131°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Waterproof rating IPx6 and IPx7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration 100,000 cycles of 20 G
Interface and connections
Interface Multi-touch screen
Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100.
Ethernet 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars
Weather Not in first release
USB 1 port (USB A) Output: 5 V DC, 1.5 A
External Storage 1 MicroSD slot, 1 port (USB A)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 No
GPS Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 32 Channels
GPS Update rate 10Hz
J1939 No
WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic
Charts Supported C-MAP Discover X, C-MAP Reveal X, third party charts
AIS Receive AIS data over NMEA 2000
Digital Switching C-Zone, Simrad COMMAND DDS
Warranty
Warranty Period 2 Years

What's in the Box:
  • NSX3015UW Display
  • ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable
  • DISCOVER X - NORTH AMERICA
  • 4-Pin Power Cable
  • Fuse Kit
  • NSX 3015UW Suncover
