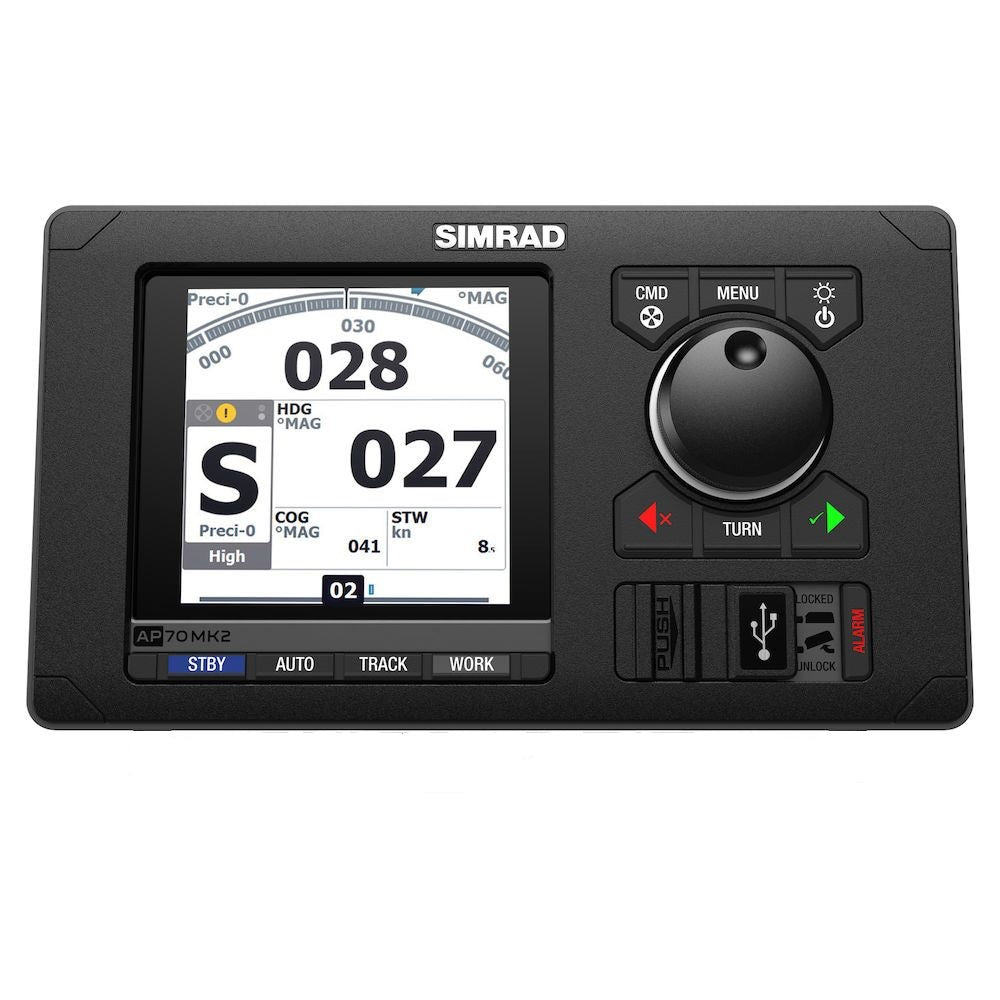

Simrad SIM00014958001 MK2 Control Auto Pilot Control Head
Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

Manufacturer: Simrad
MPN: SIM00014958001
Availability: 1 In Stock
$1,837.88
$1,980.00
$1,837.88
Please hurry! Only 1 left in stock
Subtotal: $1,837.88
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

Simrad

Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

$1,837.88
Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

Simrad

Simrad SIM00014958001 MK2 Control Auto Pilot Control Head

$1,837.88
Description
Description
x

Simrad AP70 MK2 Control

Model: 000-14958-001
  • Wheelmarked for use on board SOLAS vessels (IMO, MED-B)
  • Advanced configuration and tuning options to suit all ships
  • Compatible with all common rudder/drive types
  • Up to 6 rudders/thrusters integration
  • Heavy-duty rudder feedback support
  • Configurable work modes and low/high speed modes
  • No Drift steering holds course against wind and tide
  • Navigation steering, route following
  • Command transfer and multiple control stations support

The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.

Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.

Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.

Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.

The AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognised with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.

Parameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.

Water jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.

Dual rudders, fore and aft thrusters supports large and complex installations and redundancy.

Simrad heavy-duty rudder feedbacks are supported.

Autopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.

Navigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.

Command transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.

Specifications
PC Connectivity 1 x Ethernet port
Compass Safe 0,4m (15,75")
Power Consumption typical 0,7/0,4 A at 12V DC, 0,4/0,3 A at 24 V DC backlight full/off
Power Consumption max 0.7A at 12V, 0.4A at 24V
Weight 1,4 kg (3,1 lbs)
Supply Voltage 12/24VDC +30 -10%
Viewing Angles 170° viewing angle
NMEA 2000 Connectivity 1x CAN Micro-C port, 1 LEN
Warranty Period 2 years
Dimensions W x H x D 253 x 144 x 54mm (9,92 x 5,67 x 2,13 ")
Storage Temperature Range -25C to +70C (-13F to +158F)
Recommended Fuse Rating 2A
Operating Temperature Range -30C to +55C (-22F to +131F)
Display Resolution 480 x 480
Waterproofrating Exposed IPx6
Mounting Type Flush, bracket
Type Approval HCS, HSC, Wheelmark, US Coastguard, CCS, and RMRS approved depending on autopilot computer
Interface Keypad and rotary dial
Approvals Compliance MED-B-7837-DNV, MED-B-7918-DNV, MED-D-Navigation Equipment
Compasssensor support NMEA2000, NMEA0183
Steering Modes Non Follow Up (NFU), Follow Up (FU), Auto, NoDrift, Nav
Engine Drive systems integration Reversible pump, Solenoid valve on/off, Proportional valve, Analog, CAN (SG05Pro)
Rudder sensor s upport RF300, RF45X, RF25N, RF70, RF14XU
N2K PGNs See SI80 Signal Interface
Manouevres Turn Patterns U-turn, S-turn
Backlight Color White/Red

What's in the Box:
  • Simrad AP70 MK2 Control
  • N2K-T-RD Network T-Connector
  • N2KEXT-15RD 15ft Network Extension Cable
  • Power Cable, 4-Pin
